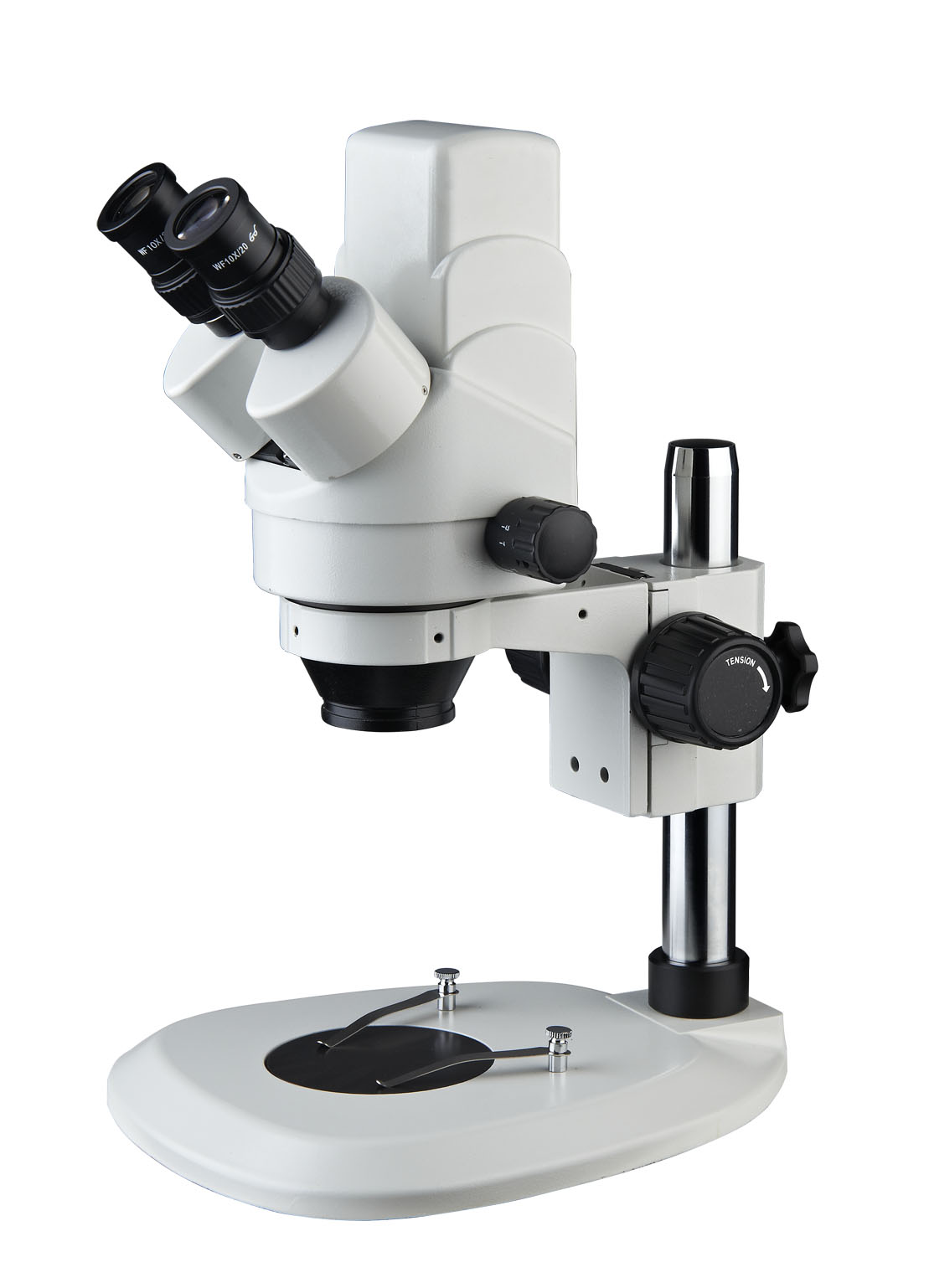

SZ7045V-J4L comes with binocular head and built-in CMOS camera. It is with 30mm super widefield, high-eyepoint, WF10X/22 eyepieces, CMOS camera can be 1.3 MP or 3MP depending on your choice. It offers a large zoom range, long working distance. The versatile illumination system with the microscope provides both incident (top) lighting and transmitted (bottom) lighting with intensity controls. It is an ideal instrument for researchers, gemologists, engravers, collectors as well as semiconductor and electronics application etc.
| Head | 45 degree inclined 360 degree rotatable binocular/trinocular head |
| Diopter Adjustment | ‘+/-5dp |
| Interpupillary Distance | 55-75mm |
| Eyepiece | WF10X/20 (DIN: 30mm) (Optional: WF15X/15mm, WF20X/10mm) |
| Objective | Zoom 0.7-4.5X |
| Magnification | 7X-45X |
| Zoom Ratio | 1:6.5 |
| CMOS Camera | 1.3M (or 3M) pixel 1/2’’ COMS |
| Working Distance | 100mm |
| Stand | Pillar stand |
| Illumination | LED Ring Light |
- 1 Binocular/Trinocular Stereo Zoom Microscope Head
1 Pair of Super Widefield 10X Eyepieces
1 Pillar Stand
1 Focusing Rack - 1 USB Cable and CD
1 Pair of Eye-guards
1 Dust Cover1 set/carton. Size: 51cm*36cm*30cm. Gross weight: 6.5KGS
