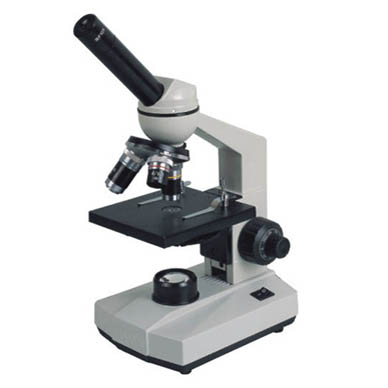

QT91-06C is designed for professional applications in clinical offices and research laboratories. This microscope comes with a 45 degree inclined 360 degree monocular head, coaxial coarse fine focusing system, intensity-variable halogen illumination. It gives four level magnifications: 4X-40X-100X-400X. It is a right instrument for clinical or research applications.
| Head | 45 degree inclined 360 degree rotatable monocular head |
| Eyepiece | WF10X/18 (DIN: 23.2mm) (Optional: WF16X) |
| Objective | 45mm DIN Achromatic Objective:4X, 10X, 40X(S) |
| Magnification | 40X-400X (Optional: 640X) |
| Mechanical Stage | Double Layers Mechanical Stage:110X125mm, Moving Range X-Y:70X50mm |
| Nosepiece | 4 position revolving nosepiece with positive stop |
| Focusing Unit | Coaxial Coarse And Fine Focusing Adjustable Mechanism:14mm |
| Condenser | ABBE Condenser:N.A. 1.25, Ø2-Ø30mm Iris Diaphragm And Ø32 Filter |
| Illumination | Built-in Halogen Lamp 6V/20W/Incandescent Lamp 20W, brightness is adjustable |
1 Monocular Compensation-Free Head
1 Microscope Body with Frame and Base with Power Cord
4 High Quality DIN Objectives, 4X, 10X, 40X
1 Piece of Widefield 10X Eyepieces
1 6V/20W Spare Halogen Bulb or 20W Incandescent Bulb
3 Color Filters and Spare Fueses
1 Dust Cover
4 sets/carton. Size: 54cm*39cm*40cm Gross weight: 11KGS
