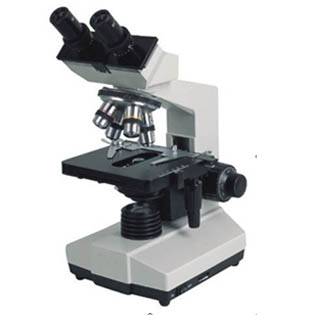

QT-107BN is designed for professional applications in clinical offices and research laboratories. This microscope comes with a 45 degree inclined 360 degree binocular head, coaxial coarse fine focusing system, intensity-variable halogen illumination. It gives four level magnifications: 40X-100X-400X-1000X. It is a right instrument for clinical or research applications.
| Head | 45 degree inclined 360 degree rotatable binocular head |
| Eyepiece | WF10X/18 (DIN: 23.2mm) (Optional: WF16X) |
| Objective | 45mm DIN Achromatic Objective:4X, 10X, 40X(S),100X(S, Oil) |
| Magnification | 40X-1000X (Optional: 1600X) |
| Mechanical Stage | Double Layers Mechanical Stage:140X155mm, Moving Range X-Y:70X50mm |
| Nosepiece | 4 position revolving nosepiece with positive stop |
| Focusing Unit | Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm |
| Condenser | ABBE Condenser:N.A. 1.25, Ø2-Ø30mm Iris Diaphragm And Ø32 Filter |
| Illumination | Built-in Halogen Lamp 6V/20W/Incandescent Lamp 20W, brightness is adjustable |
1 Binocular Compensation-Free Head
1 Microscope Body with Frame and Base with Power Cord
4 High Quality DIN Objectives, 4X, 10X, 40X and 100X with Immersion Oil
1 Pair of Widefield 10X Eyepieces
1 6V/20W Spare Halogen Bulb
3 Color Filters and Spare Fueses
1 Dust Cover
2 sets/carton. Size: 58cm*36cm*45cm Gross weight: 14KGS
