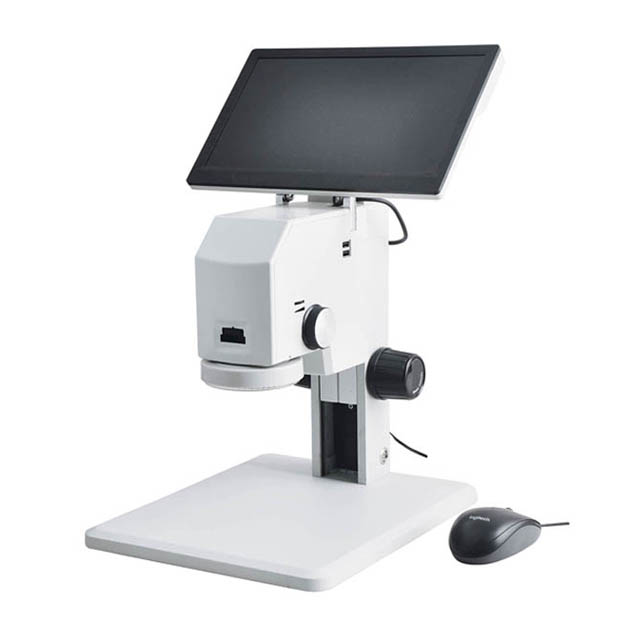

DM-75P comes with fixed stand and plain universal base, and a LED ring light as top illumintor with brightness adjustable. It is with 12″ LCD monitor with HDMI interface, high ratio zoom lens and built-in HDMI camera. This microscope is very easy to assemble and simple to operate, it offers a large zoom range, long working distance, especially LCD monitor display with measurement, which is an perfect instrument for industrial inspection.
| LCD Monitor | 12″ LCD monitor |
| Camera | 2.0M HDMI, true color, no delay.Max. Resolution: 1920*1080 Sensor: 1/2.86 inch SONY sensor,Pixel Size: 2.75*2.75μm Frame Rate: 60fps@1920*1080. SNR: 65DB |
| Objective | Zoom 0.7X-5X |
| Reduce Lens Inside | 0.35X |
| Total Magnification | 12X-87X (optional magnifications: 9X-174X) |
| Working Distance | 100mm |
| Operation | Wireless mouse operation, image capture, U disk storage and measurement |
| Functions | This is an intelligent all in one microscope. Support high definition video/manual measurement/ photographing/video/USB drive storage/image freezing/measuring data EXCEL output/graphic primitive EXCEL output/single reticle/double reticle/four transverse lines and four vertical lines/white balance adjustment/gain adjustment/ saturation adjustment/reflection elimination adjustment/ brightness adjustment/HDR depth of field adjustment/ mouse control. An External HDMI Output is available for connecting a larger HDMI LCD display. USB interface for U-Disk storagep or Mouse control. |
| Base | 260mm(X)*320mm(Y) |
| Optional Accessories | Auxiliary Objectives, 3D Lens, Moving stage |
| Illumination | 144 LEDs ring light as top light. |
| Bottom light source is optinal |
1 x 12″ LCD Monitor
1 x Microscope Stand with built-in HDMI camera
3 x Monitor fixing screw
1 x AC Adapter (100-240V, 12V 2A)
1 x Logitech Wireless Mouse
Package: Size: 39.5cm*38cm*31cm. Gross weight: 7KGS (1set/carton)
Size: 42cm*40cm*67cm. Gross weight: 12.8KGS (2sets/carton)
